185UF High Efficiency Softener

WG185UF Series Water Softener.jpg

Uses 75% less salt and 64% less water than traditional softeners!

WaterGroup’s premier high-efficiency softener sets the new standard for high performance while offering more features designed to make installations faster & easier than ever!

FEATURES:

  • IAPMO R & T Certified Against NSF/ANSI 44 and CSA B483.1

  • NSF Certified electronic control valve with reliable piston, seal and spacer technology

  • NSF Certified Pressure Tank and Control Valve

  • IAPMO R & T certified cation resin

  • Pre-installed bypass with integrated space saving turbine meter and sample ports on the inlet. One piece design avoids meter jamming.

  • User-friendly backlit LCD display

  • 48 hour memory back-up, adjustable cycle times, and overflow protection

  • Quick Connect fittings on bypass, drain, brine line and power cord

  • Available in cabinet or dual tank models

Purchasing a 185UF High Efficiency Softener for your home?


Upflow Regeneration with Precision Brining

Traditional "downflow" softeners deplete the unused portion of the resin bed with every regeneration. It is like draining the gas tank in your car before you fill it up! "Upflow Regeneration" drives the hardness minerals up through the already depleted resin and out to the drain - saving both salt and the unused portion of the resin for future use.

Precision brining saves additional salt by pre-making only 70% of the brine. Just before regeneration, the computer calculates the precise amount of brine top-up needed to regenerate only the depleted resin saving up to 30% more salt.


Revers Flow Diagram.jpg

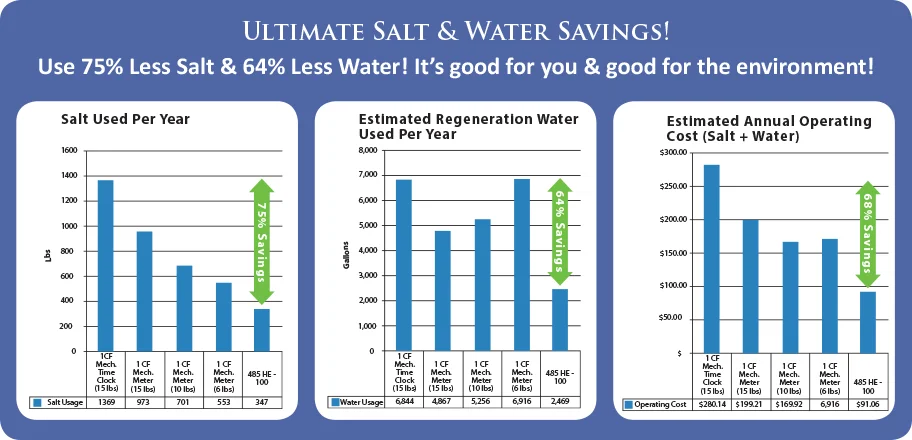

Salt Water Savings.jpg

Resources

185UF Softener Spec Sheet

Total Home Protection

80156003

85UF/DF Softener Manual #80150310

185 UF Service Manual #54820

185UF Warranty

185UF Quick Start Guide

185UF Quick Start Guide

185UF Sizing Guide

185UF Sizing Guide
